VOLVO F, G, & H WHEELOADER FORESTRY GLASS REPLACEMENTS

VOLVO POLYCARBONATE WINDOW REPLACEMENTS| F, G & H SERIES
Replaces Glass #15079714, #15053915, and #15053831 with One-Piece Panel

This one-piece 3/8" or 1/2" polycarbonate front windshield replaces the original three-piece glass configuration (center, left-hand, and right-hand) on Volvo wheel loaders from the F, G, and H Series. Engineered for harsh applications like forestry, brush work, and demolition, it provides enhanced operator safety, improved visibility, and maximum impact resistance. We also offer the other glass panels in a 1/4" poly.

---

Fitment Details

• Replaces All 3 OEM Front Glass Panels:
  • Front Center: 15079714
  • Front LH: 15053915
  • Front RH: 15053831

• Combines all three into a single precision-formed panel

• Installs using existing OEM mounting hardware

• Mounting hardware not included

• If replacing thinner glass (such as 1/4"), longer bolts may be needed

---

Compatible Models

Volvo F Series:
L60F, L70F, L90F, L110F, L120F, L150F, L180F, L220F, L350F

Volvo G Series:
L60G, L70G, L90G, L110G, L120G, L150G, L180G, L220G, L250G, L350G

Volvo H Series:
L60H, L70H, L90H, L110H, L120H, L150H, L180H, L220H, L250H

---

Why Polycarbonate?

Our SSC® polycarbonate panels are engineered for superior protection and longevity in the toughest conditions. Unlike standard OEM glass, this panel is made from heavy-duty polycarbonate that is post-coated on both sides with our proprietary SUPERCOAT™ for excellent abrasion resistance.

---

Key Features

• Precision-formed from 1/4", 3/8" or 1/2" thick clear polycarbonate

• Replaces three-piece OEM glass layout with one solid panel

• 250x stronger than glass – will not crack or shatter under impact

• Half the weight of traditional glass

• Reduces cab noise and improves thermal performance

• Enhanced light transmission and clear operator visibility

• Fully pre-drilled to match factory mounting points

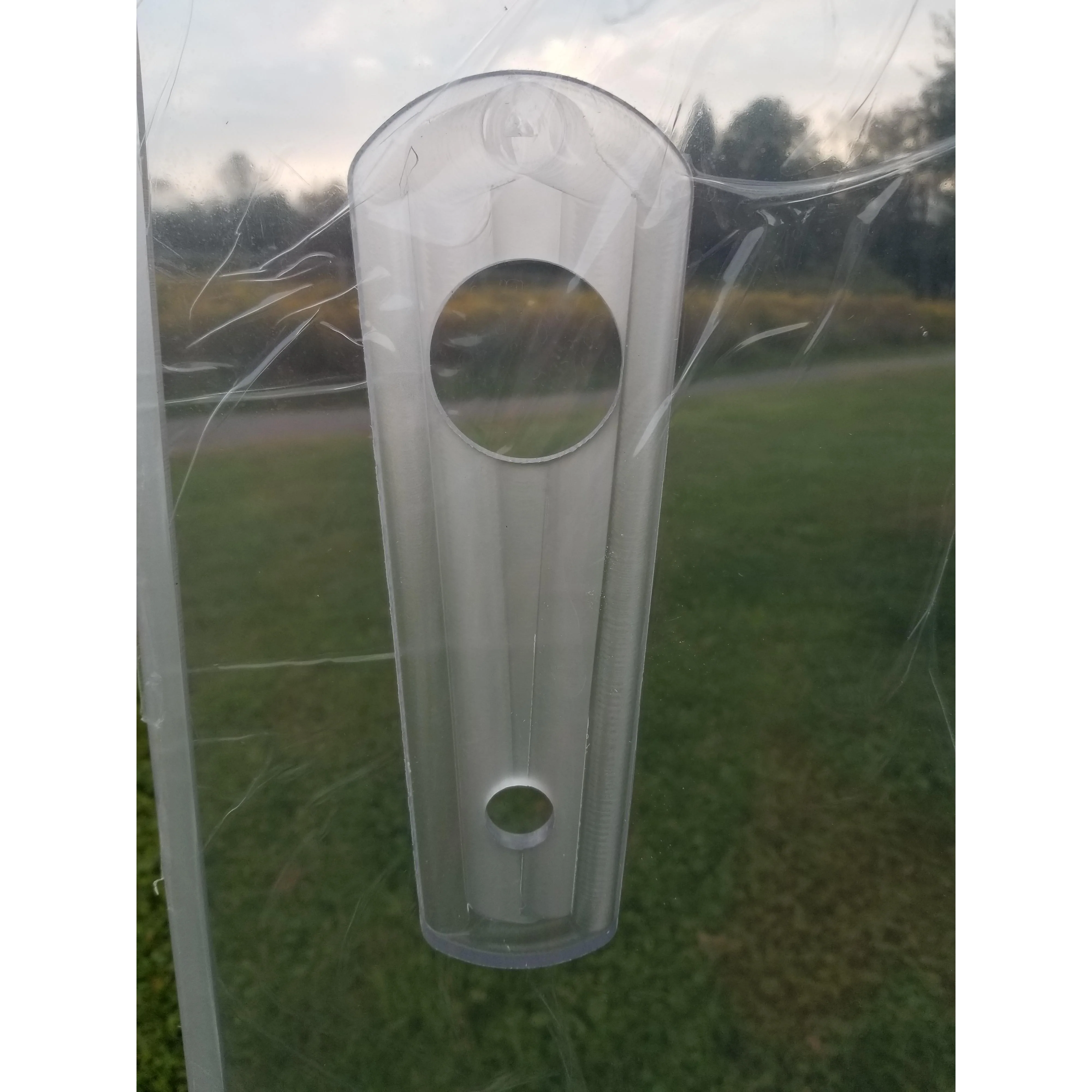

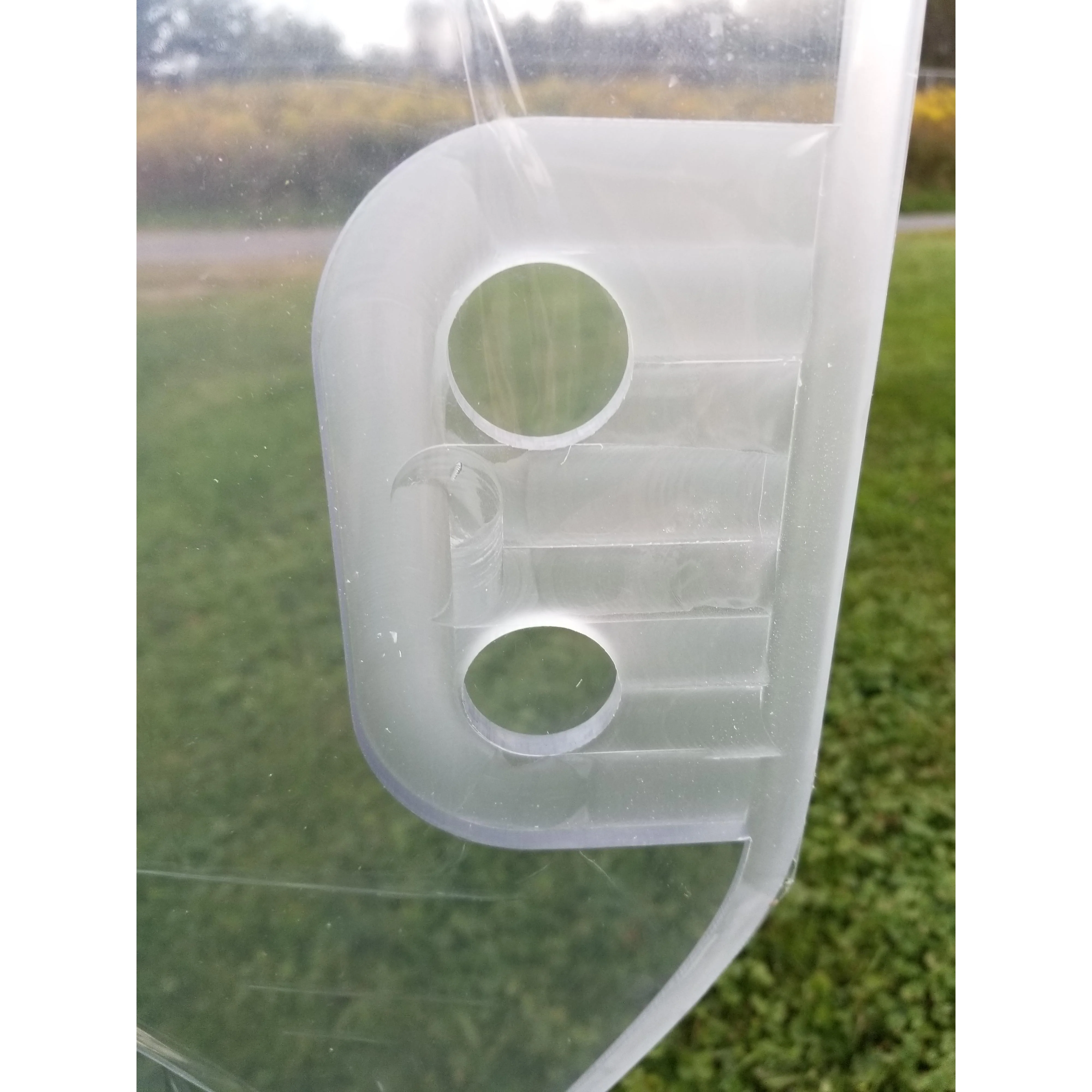

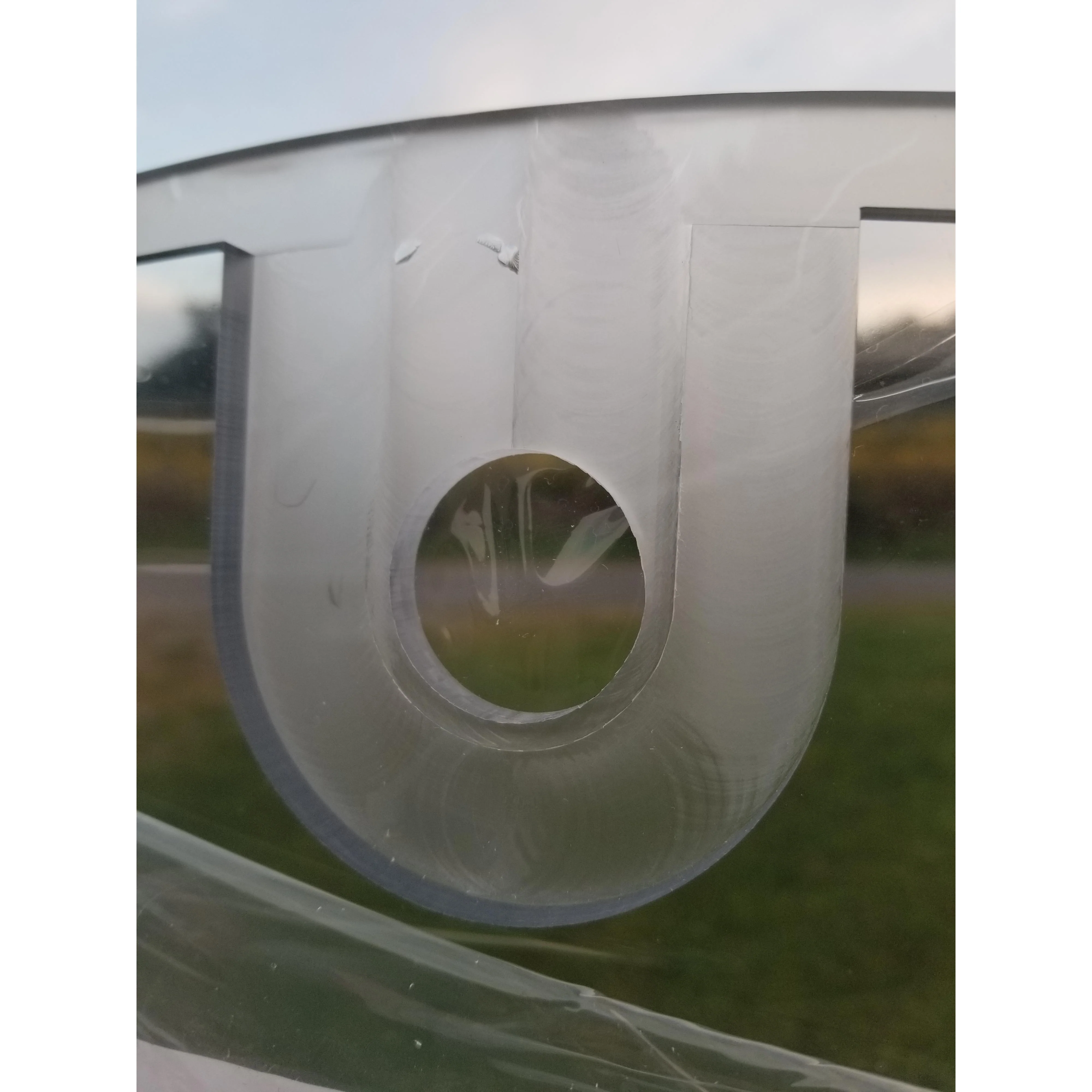

• Milled edges for easy gasket fit and maintenance

• SUPERCOAT™ coating on both sides for long-lasting scratch protection

• Mounting hardware not included

---

Additional Panels Available

We also offer matching polycarbonate replacement panels for other parts of the cab. These are typically available in 1/4" thickness:

• LH Lower Door

• LH Door Upper Slide

• LH Door Upper Fixed

• RH Lower Window

• RH Upper Slide

• RH Upper Fixed

• Rear Window (inquire for availability)

---

Important Notes

• Production Lead Time: Please allow up to 45 business days depending on material availability and production volume. Contact us to confirm lead time before placing your order.

• Images shown are examples and may not reflect the exact panel configuration for your machine.
