CASE POLYCARBONATE SKID STEER DOOR | REPLACEMENT | 84344565 | 47405930

CASE POLYCARBONATE SKID STEER DOOR | SR/TR SERIES | SV/TV SERIES

Our precision-made Case SR/TR and SV/TV Series polycarbonate skid steer doors are the ideal upgrade or replacement to provide increased safety and operational efficiency for such jobs as mowing, brush clearing, forestry, mulching, and much more.

Why Polycarbonate?

With a new SSC® precision formed and coated Polycarbonate windshield you can count on the same quality form, fit, and function of your standard OEM glass, but with substantially improved safety, durability, and performance.

We begin by cutting and forming our doors to duplicate the OEM glass (including hardware mounting holes). Then we precision mill the edges and holes so that the original hardware can be used from your existing glass door. Finally, we post-coat both sides of the door with our ultra-tough SUPERCOAT™ protective coating. This gives the polycarbonate nearly the same level of abrasion resistance of glass, but with drastically improved safety and durability.

Fitment Details

The Case SR/TR and SV/TV Series polycarbonate doors are designed to be a direct replacement for your standard OEM door glass and features the same mounting and hardware holes. The door uses your existing OEM hardware for installation and replacement of your existing door. The purchase of this door DOES NOT include mounting hardware. If replacing a 1/4" or less thickness OEM door with 1/2" polycarbonate, longer bolts may be required for optimal installation. Replaces OEM Glass #s: 84344565 & 47405930 (wiper holes determine #)

Compatibility

• SR/TR Series | Single Wiper Arm | 1/4" or 1/2'' Thick
• SR/TR Series | Dual Wiper Arm | 1/4" or 1/2'' Thick
• SV/TV Series | Single Wiper Arm | 1/4" or 1/2'' Thick
• SV/TV Series | Dual Wiper Arm | 1/4" or 1/2'' Thick

Model List

New Holland Skid Steer Models: Made after 2013

• L213,
• L215,
• L218,
• L220,
• L223,
• L225,
• L230,
• C227,
• C232,
• C238

Case Skid Steer Models:  Made after 2013

• SR130,
• SR150,
• SR175,
• SR200,
• SR220,
• SR250,
• SV185,
• SV250,
• SV300,
• TR270,
• TR320

Features

• 1/4", 3/8", or 1/2" thick polycarbonate options
• Clear Lexan/Polycarbonate material is impact-resistant
• Increased durability
• Increases operator safety
• Ideal replacement for OEM factory glass
• Super-coated on both sides for optimal abrasion-resistance
• Precise replication of OEM mounting holes
• Milled edges make swapping out the door seal fast and easy
• 1/2 the weight of glass
• 260 times stronger than glass (will never break again)
• Much better noise-reduction properties
• Increases light transmission and visibility
• Decreased summer heat transferred through the door
• Reduced winter heat loss
• HARDWARE IS NOT INCLUDED

Note: Please be aware that production times for this product may vary dramatically depending on material availability and lead time. Some doors may take up to 45 business days to produce, please contact us to confirm lead time before ordering.

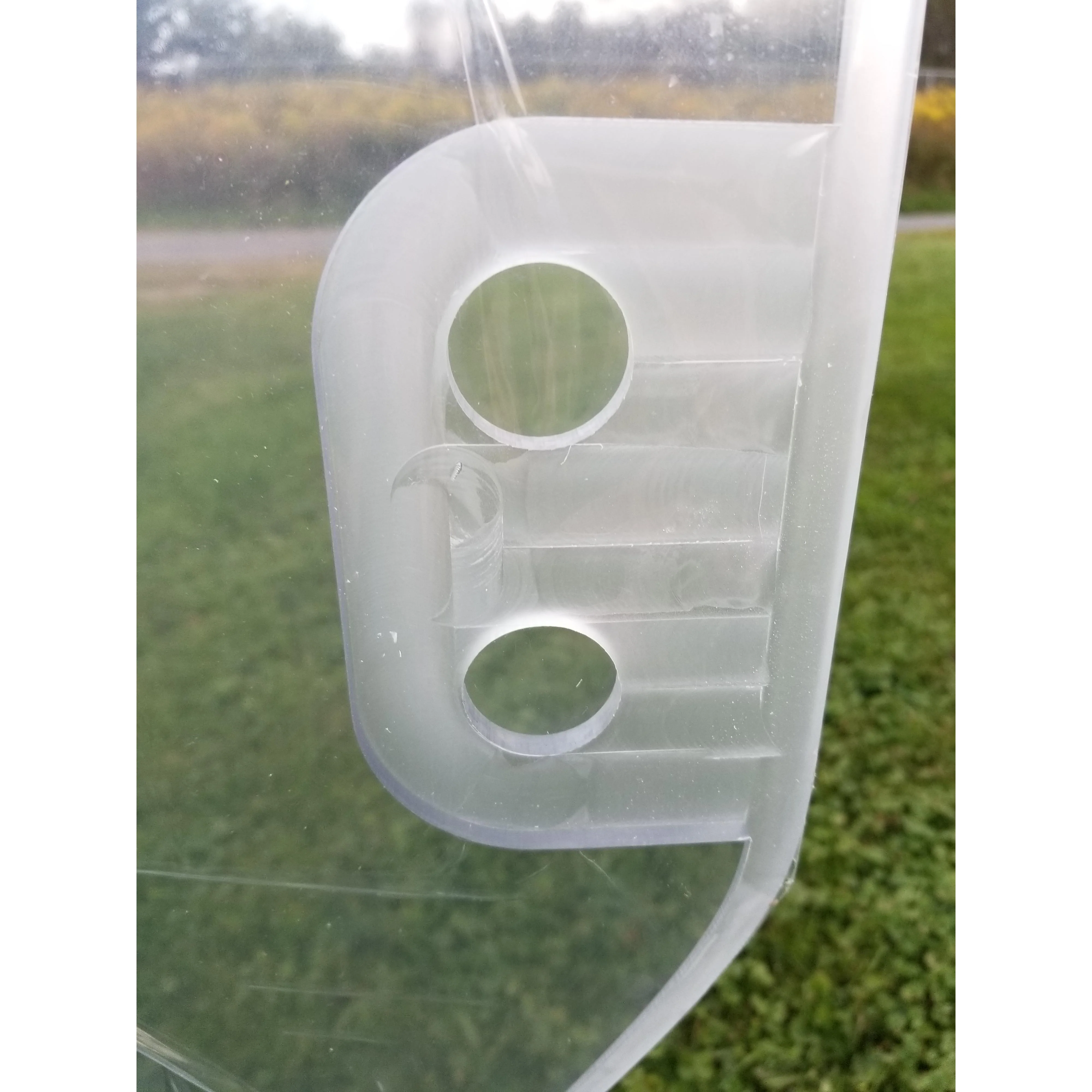

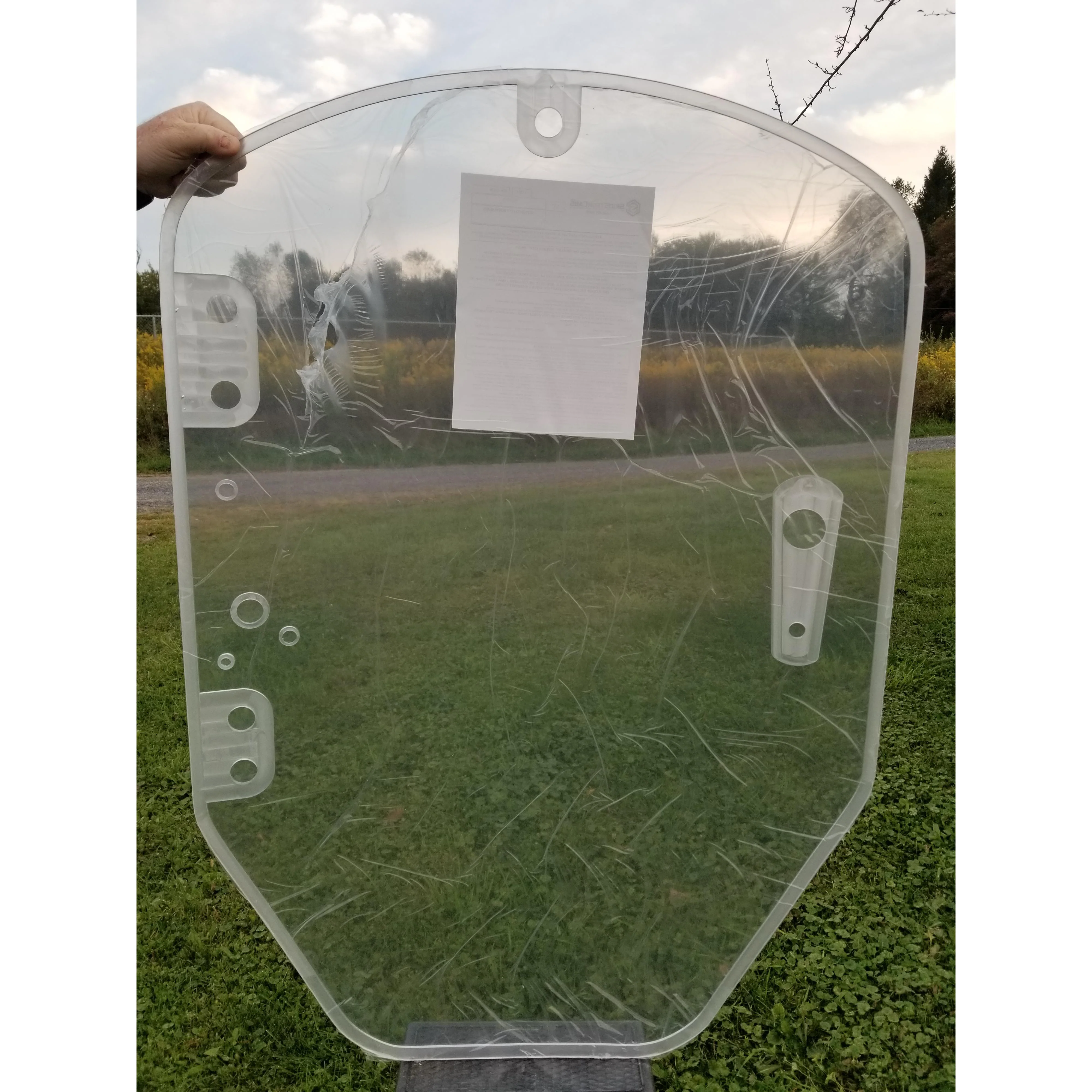

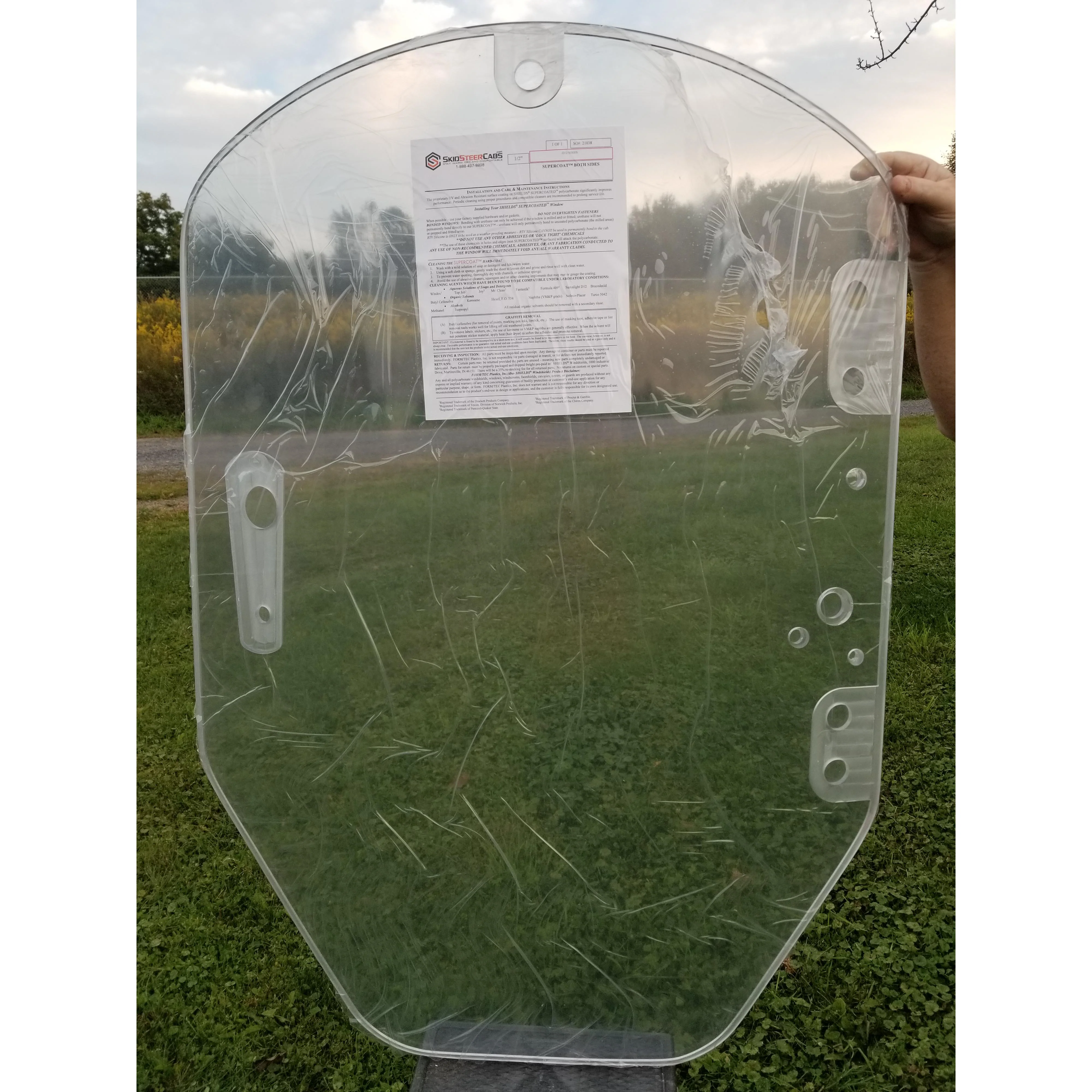

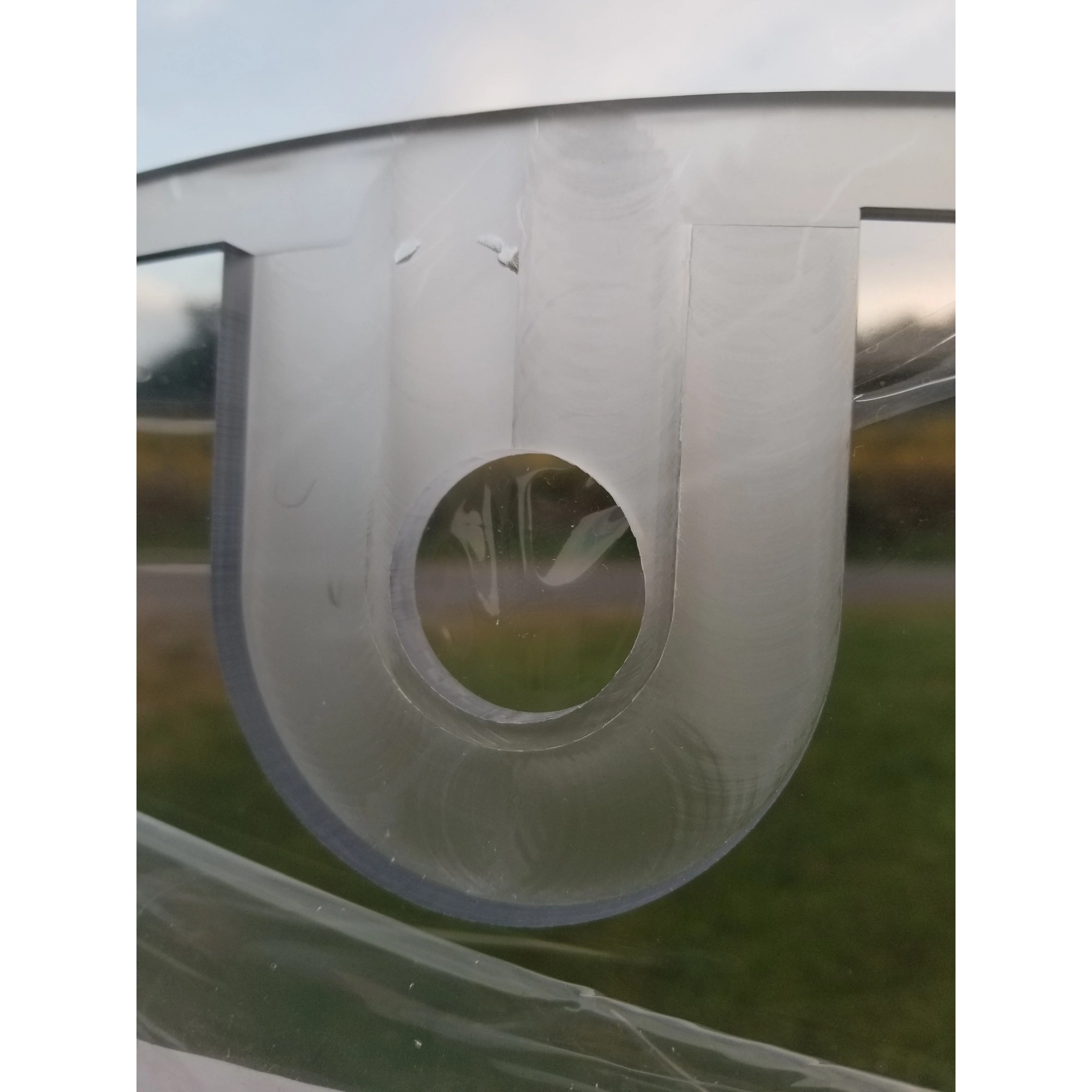

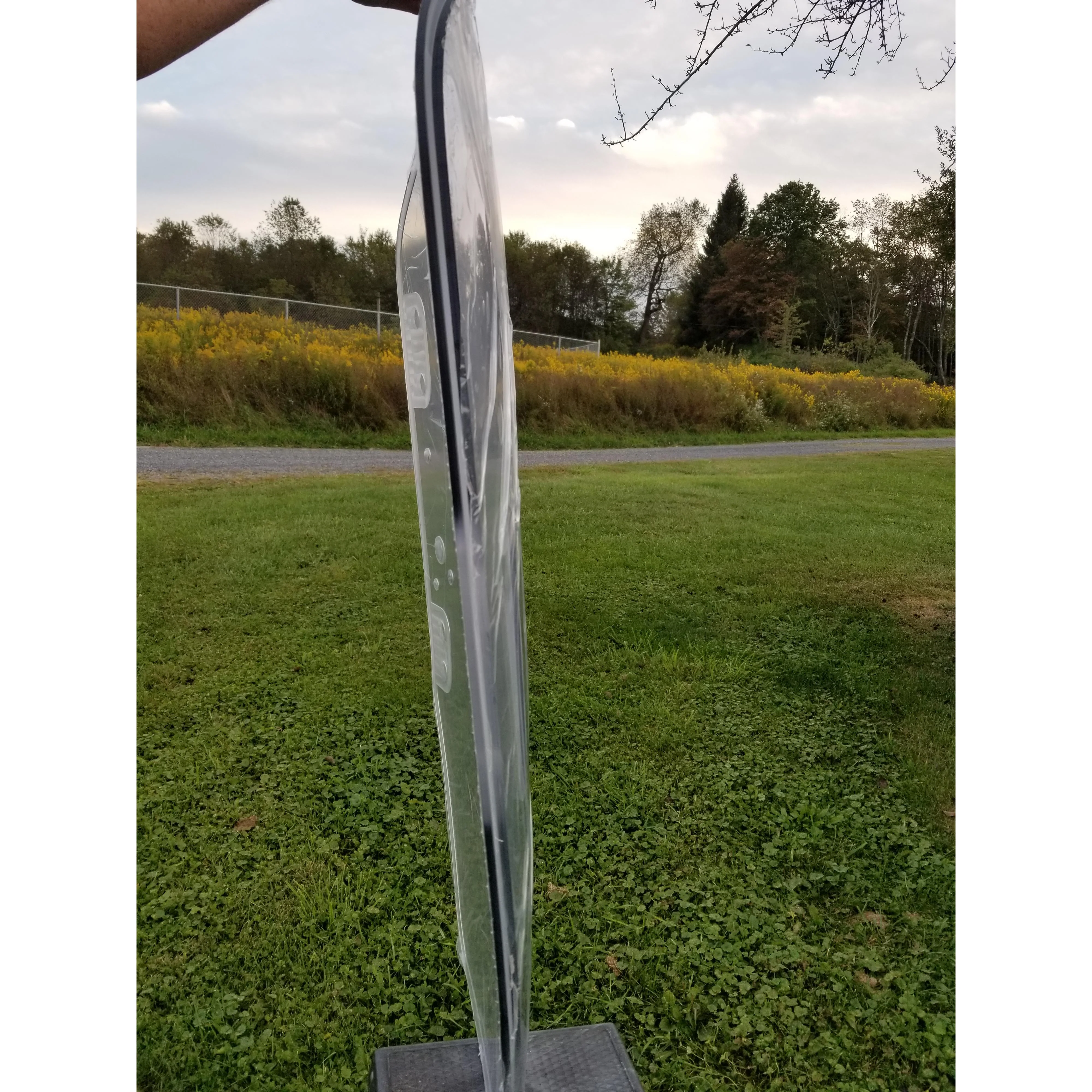

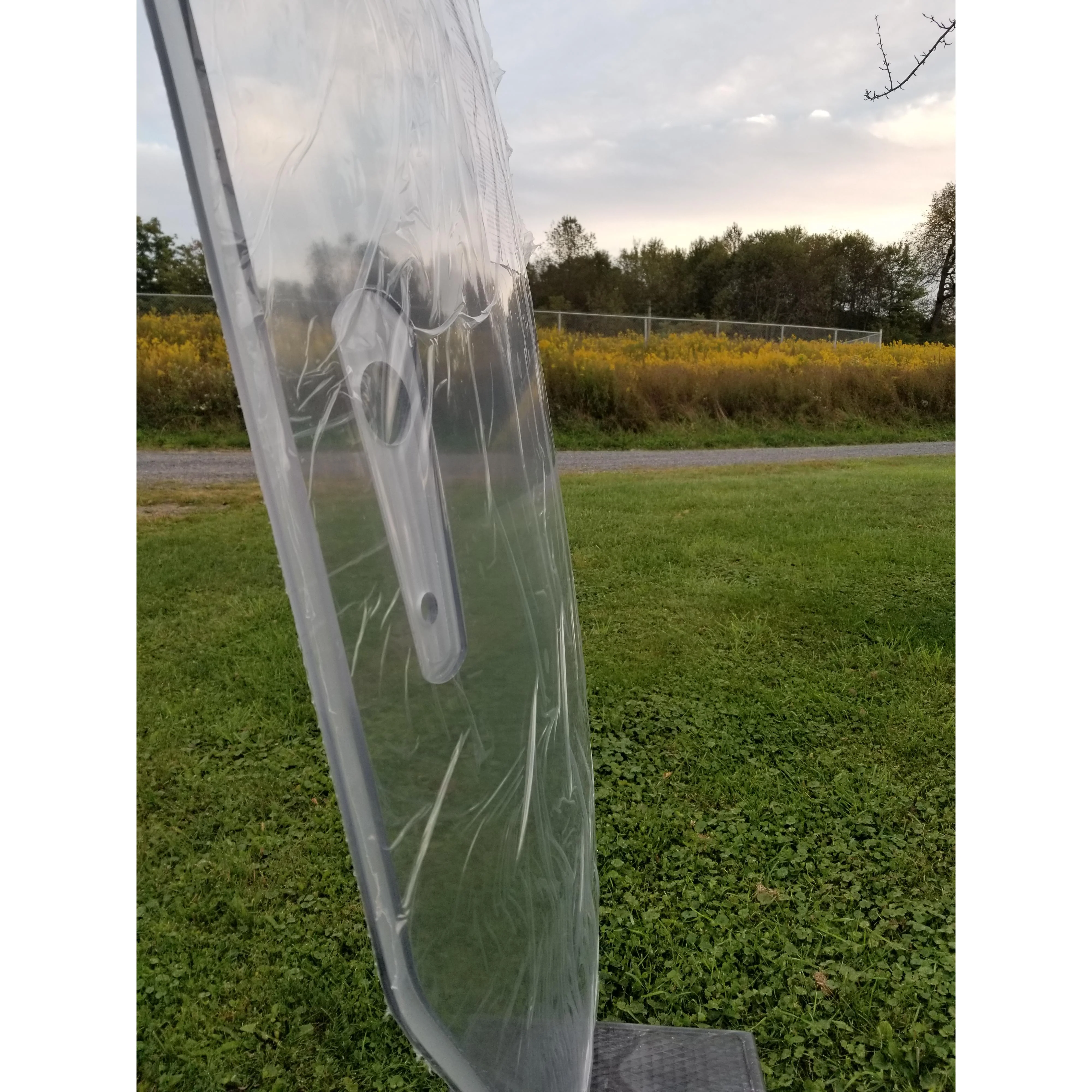

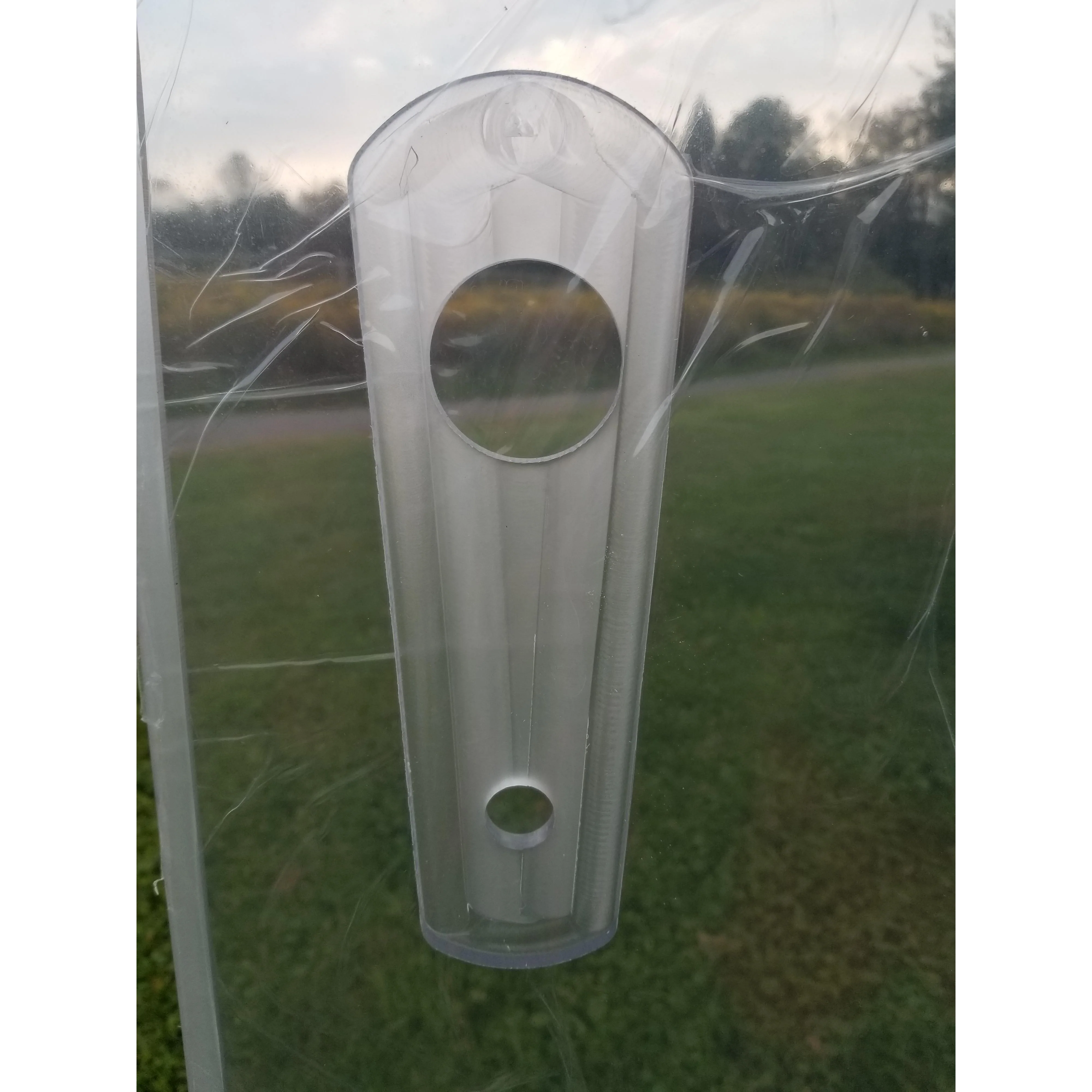

Note: images shown here are samples for a John Deere replacement door and are not the specific door for your make and model.
